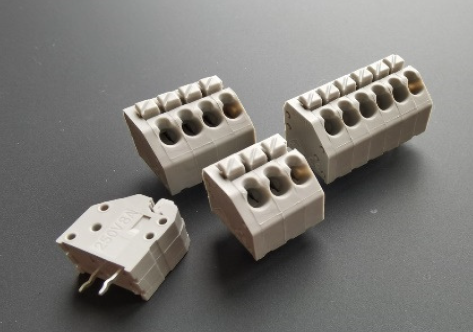

PCB Terminal (45-degree entry) Screwless pitch 3.5 / 7
PCB Terminal (45-degree entry) Screwless pitch 3.5 / 7PCB Terminal (45-degree entry) Screwless pitch 3.5 / 7PCB Terminal (45-degree entry) Screwless pitch 3.5 / 7

PCB Terminal (45-degree entry) Screwless pitch 3.5 / 7

DescriptionSpecification


- Screwless pushwire connection with button release
- Angled wire insertion (45-degree entry)
- Staggered pin-alignment option


Technical Data

Housing : Polyamide 6/6   94V-0 grade

Insert : tin-plated brass

Voltage / Ampere : 250V / 8A

Voltage / Ampere (UL) : 300V / 5A

Pin spacing : 3.5mm / 7mm

Temperature

- working : -40oC to 100oC

Cross Section : 0.2 - 0.75mm2 / AWG 20-16 Solid

Number of poles : up to 48
